Niagara Falls, NY, USA TOLL FREE: 1-800-336-7007 FAX: (716) 284-0514

Telecommunication Supply

Telecommunications maintenance products, especially those used within the Outside Plant (OSP) facilities, that includes pressure testing, splicing, CA3131 AMPFIT type air pipe parts, and other accessories.

Tapes, Covers & Adhesives
  Part Number Details

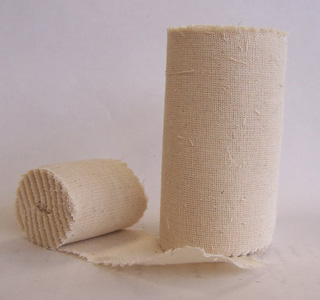

6727 6727

Muslin Roll- Used for wrapping cable splices, these unbleached cotton fabric has a 52 x 32 thread count. There are 3 sizes available and are sold 10 Rolls/Package:
-6727-2: 2″
-6727-4: 4″
-6727-6: 6″

6843 6843

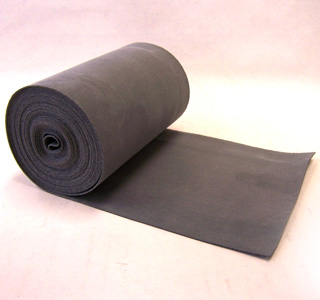

Rubber Bandage- Used in cable splicing and made of pure gum rubber. 4″ wide x 14 ft long and .03″ thick.

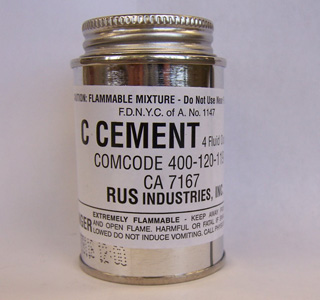

C-Cement 7167

C-Cement- A quick drying rubber based adhesive that provides superior bonding of rubber tapes and sealing tapes to polyethylene cable sheaths.  It is specifically designed to provide aggressive tack and improved adhesive strength.
-4oz can with dauber: 7167B-EA
-Box of (12) 4oz cans: 7167B-12
-32oz QT: 7167QT

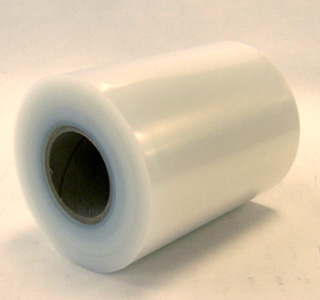

7209 7209

Add another layer of protection to your splice with this 3″ wide 8 mil polyethelyene tape. This tape has a high dielectric value and come in 2 length rolls  3″ w x 35 ft long.

  • -7209    3″ x 35 ft long
  • -7209-1   3″ x 100 ft long

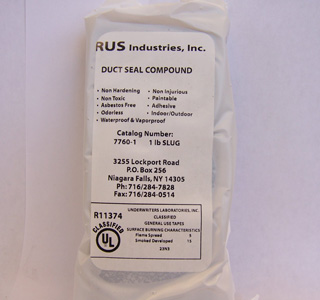

Duct-Seal 7760

Duct Seal- Duct Seal is an excellent general purpose sealer used by many of the trades. The sealer has countless other applications in the refrigeration, heating and cooling, plumbing and metal fabrication fields.  Asbestos-free, the sealer is a gray, permanently soft, non-toxic compound which will ad-here to most clean dry surfaces and will not adversely affect other plastic materials or corrode metals.
-1 Lbs slug: 7760-1
-5 Lbs slug: 7760-5

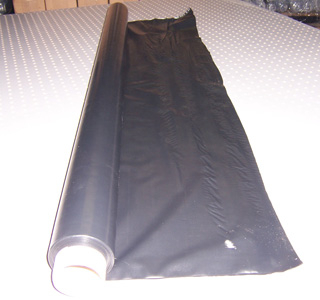

Splice-Cover Splice Cover

This is a 6-mil (.15 mm), black plastic, single-ply sheeting designed for temporarily covering cable openings during splicing.
-7203: 100′ x 48″ Roll
-72035: 50′ x 48″ Roll
-72034-1: 20″ x 24″ sheets  20 sheets/Pk

Tools & General Items
  Part Number Details

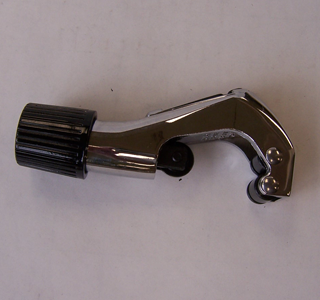

274-FC 274-FC

Premium Steel Tube Cutter with a 1/8″ to 1-1/8″ capacity

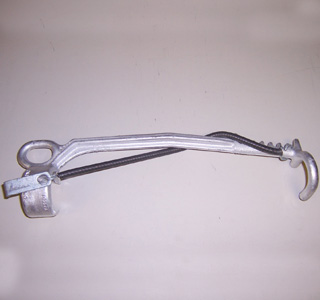

6069 6069

This cast aluminum cable lasher will lash up to 1 1/4 diameter cable. The lasher is designed to be used in those situations where there is little room and you need to lash a 130 ft span or less.  Used with our lashing wire coil (RUS part 6070).

7470 7470

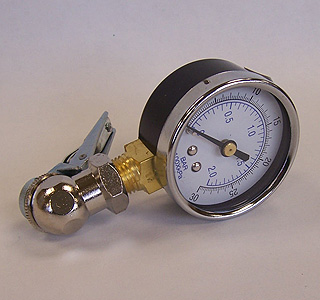

Pressure gauge.  This little gauge is an economical way to get a quick and easy pressure reading up to 30 PSI

7516 7516

3-way wrench.  This handy wrench has 3 openings for maximum versatility.  1.0625in[27mm]: 1.125in[28.6mm] & 1.1875in[30.2mm].

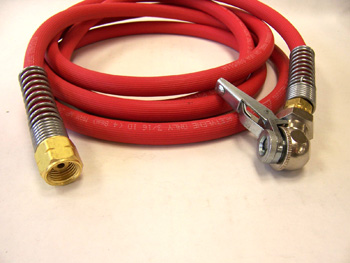

7676B-Hose 7676B

Used for conveying gas from pressure testing regulator to pressure testing valve. This hose comes standard with a snap on air chuck fitting on one end and a left-hand threaded connection nut on the other. Lengths are 8′, 25, 30′ and 40′.
-8′ Hose: 7676B8
-25′ Hose:  7676B25
-30′ Hose: 7676B30
-40′ Hose: 7676B40

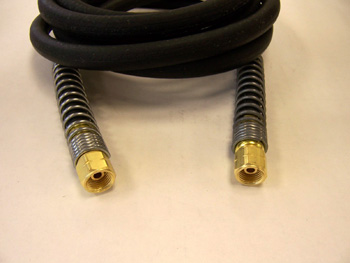

7676E-Hose 7676E

The E hose is designed for carrying LP gas to torches, heaters and other propane appliances. These hoses are equipped with CGA-023 left hand turning fittings. Comes in 2 lengths, 10′ and 30′.
-10′ Hose: 7676E10
-30′ Hose: 7676E30

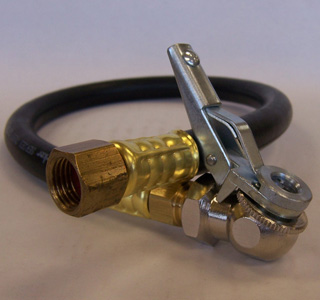

7717-CH 7717-CH

This is the replacement hose for the C-Pressure testing gauge. This 18″ hose features a snap on air chuck seated on a swivel to eliminate wrestling with the hose in awkward locations.

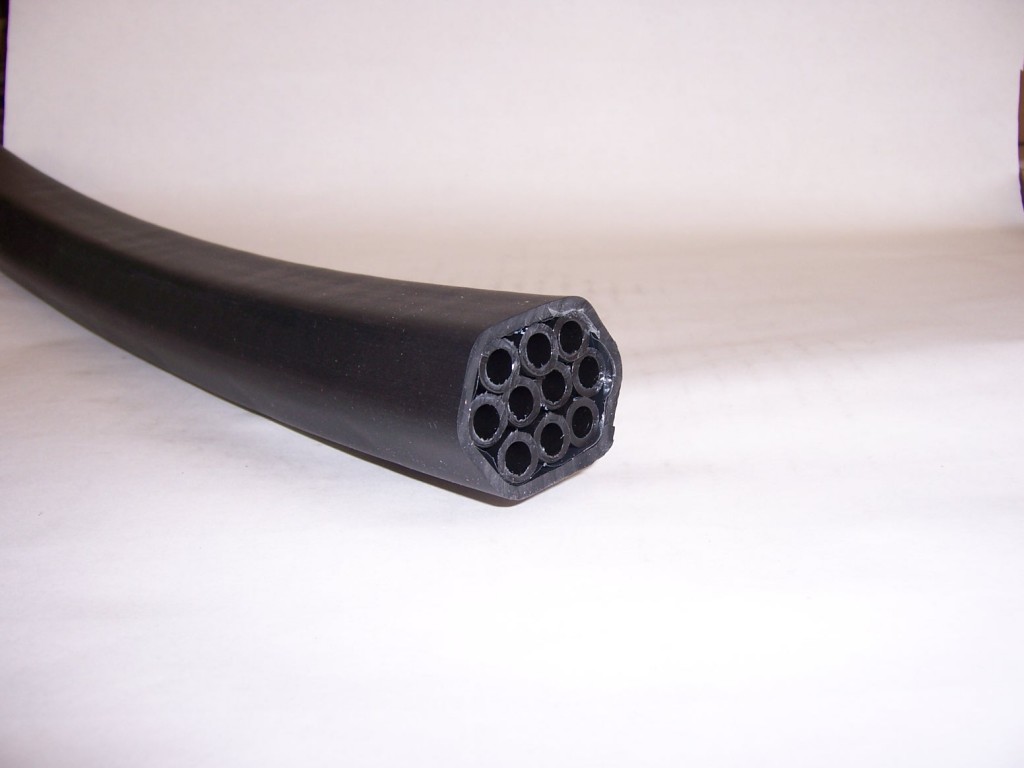

8063-10 8063-10

TUBING C PLASTIC 3/8in[9.525mm] OD – 10 TUBE – CAO8063 .  Sold  500FT/roll.  BLACK, NUMBER-CODED TUBES, CONTAINED IN A PVC JACKET

8631 8631

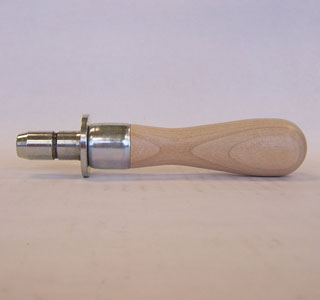

Pipe Shaper for CA3131 Gas Feeder Pipe

Manifolds, Blocks and Valves
  Part Number Details

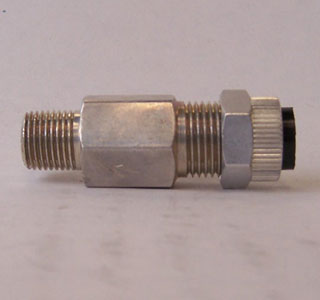

30-check-valve 30 series Check Valves

Check Valves: These items features a poppet design with and ‘O’ ring seal for positive closure. Closing of the valve occures when the manifold pressure dops 0.5 PSIG bellow the cable pressure. This part utilizes a plastic collar, is re-usable and requires no special tools.

30-3/8 - Air flow direction from 3/8 tube connection to 1/8″ Male NPT.

30M-3/8 -  Air flow direct from 1/8″ Male NPT to 3/8 Tube connection. Replaces AMPFIT part # 556456-1.

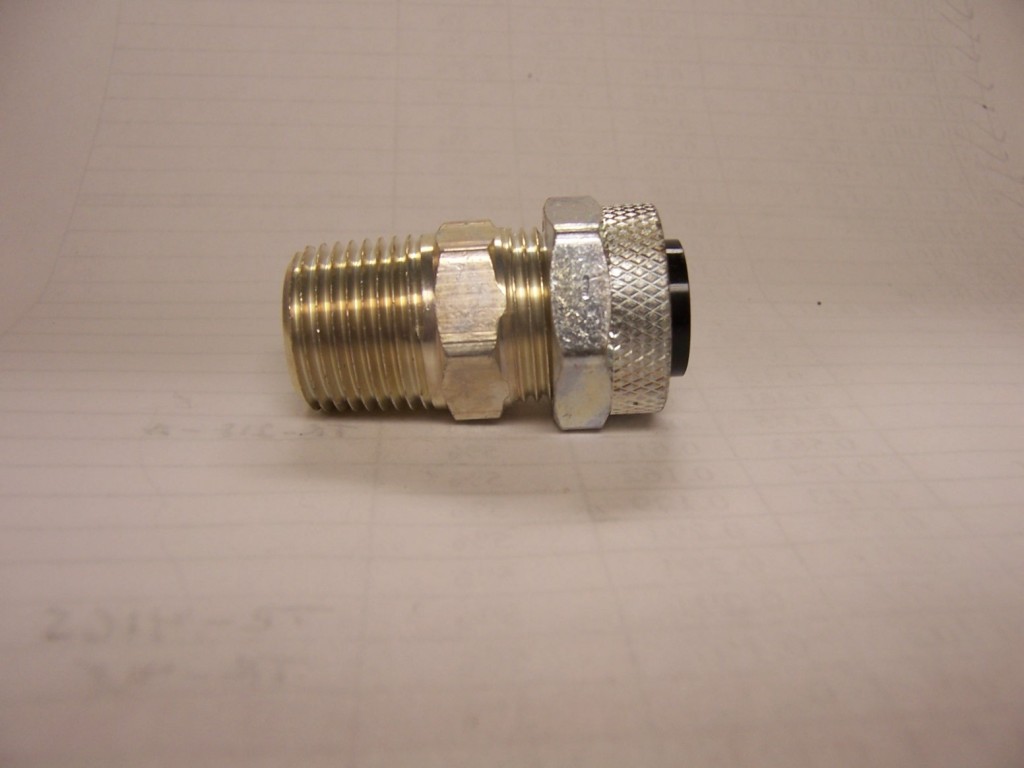

68P 68P-6-4

This part is used in the Air Pipe system for connecting the 3/8″ tubing into an existing fitting with female 1/4″ NPT . This part utilizes a plastic collar, is re-usable and requires no special tools.  Replaces AMPFIT part # 561312-1.

Note: 68P-6-2 is similar with the exception being the 1/8″ Male NPT. Replaces AMPFIT part # 561310-1.

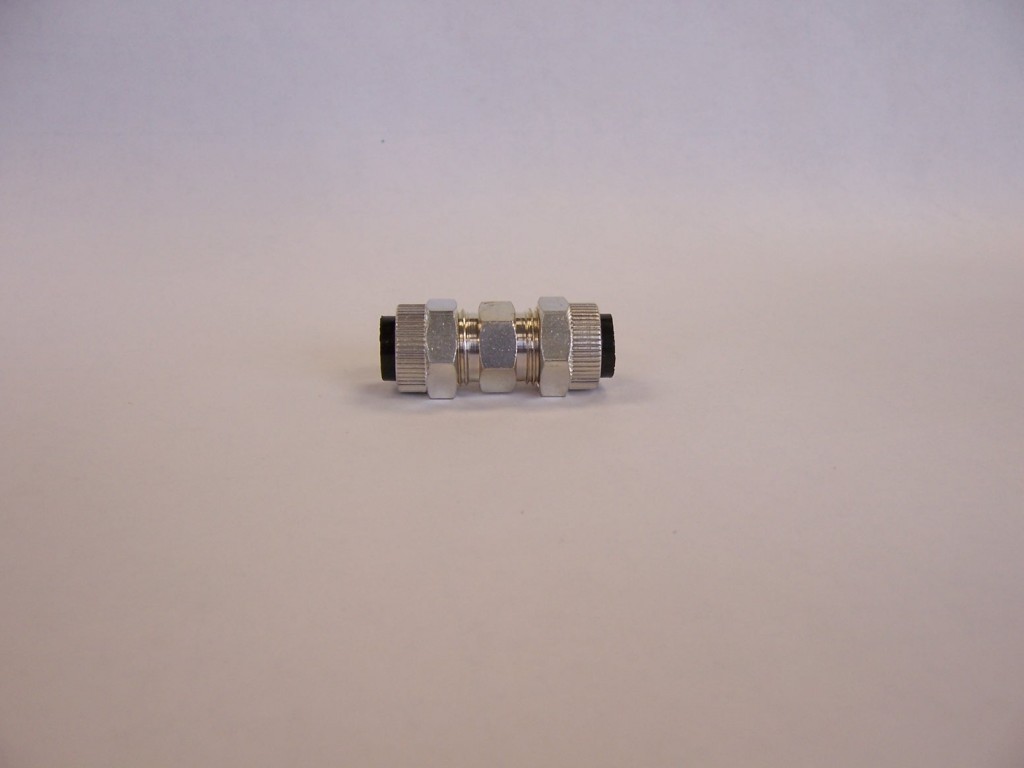

62P Series 62P-6

This part is used in the Air Pipe system specifically for connecting the 3/8″ tubing. This part utilizes a plastic collar, is re-usable and requires no special tools.  Replaces AMPFIT part # 561302-1.

3090-check-valve 3090-3/8

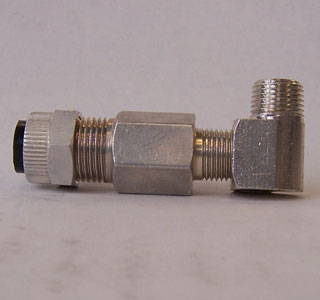

Check-Valve with air flow direction from 3/8 tube connection to 1/8″ Male NPT with 90 elbow fitting. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 556458-1.

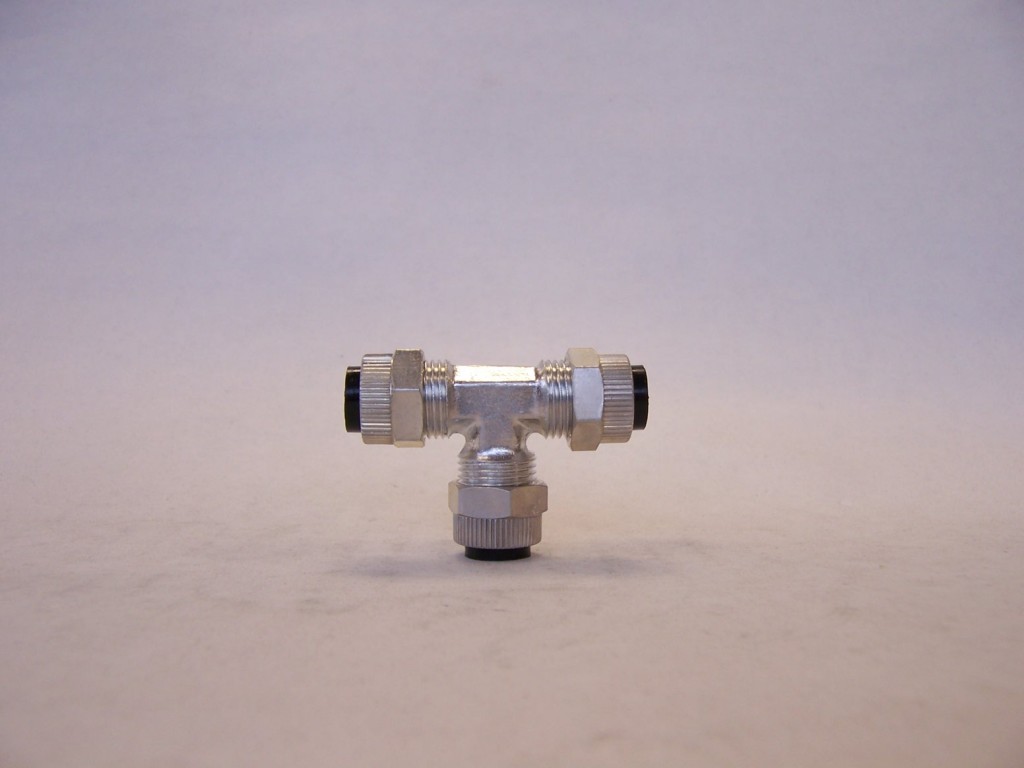

164P 164P-6

This part is used in the Air Pipe system specifically for connecting (3)  3/8″ tubing ends or running a branch off of an existing 3/8″ tubing run. This part utilizes a plastic collar, is re-usable and requires no special tools.  Replaces AMPFIT part # 561304-1.

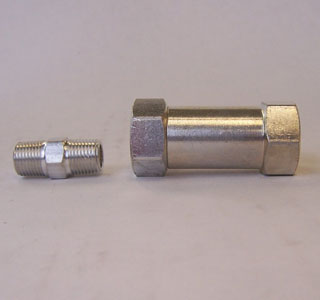

8779 8779

Check Valve to be used as a protective device installed between the CA3131 Gas Feeder Pipe and the manifold assembly, the valve will close when pressure drops 0.2 PSIG below the manifold pressure. The check valve features high flow capacity, minimal pressure drop and “bubble-tight” shutoff. A 1/8″ NPT Hex Nipple is included

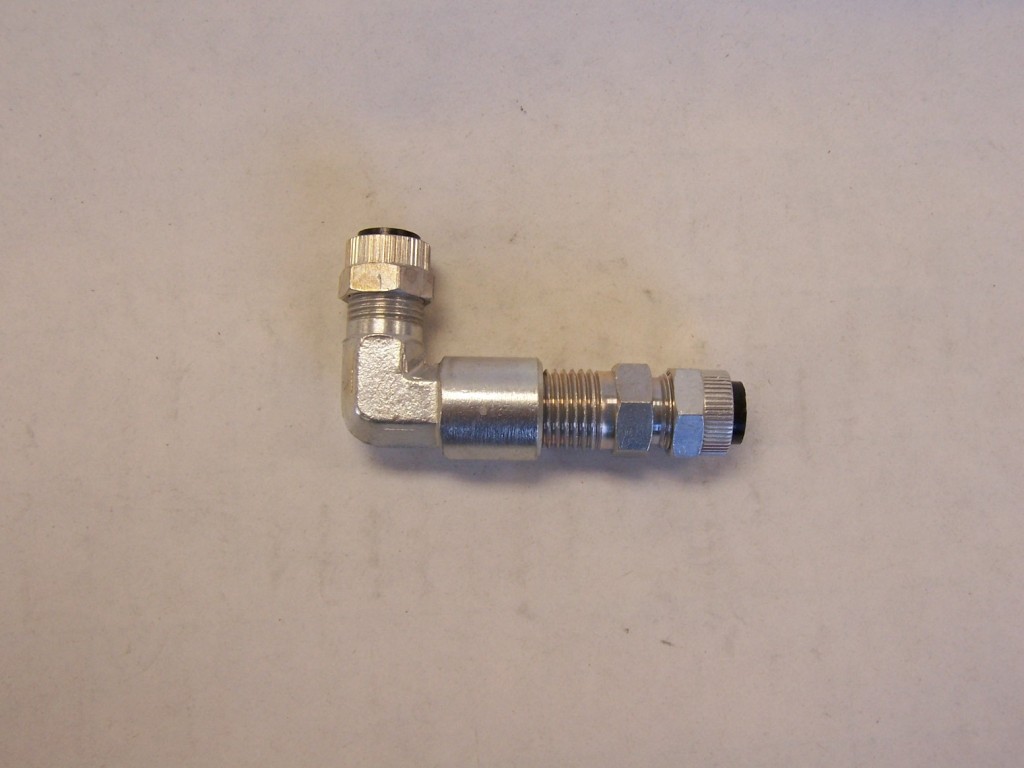

170-68P-6-6 170-68P-6-6

This Elbow fitting is used to connect to 3/8″ poly tube ends in the CA3131 air pipe system.  Sold in packages of 10. This part utilizes a plastic collar, is re-usable and requires no special tools.  Replaces AMPFIT part # 561318-1.

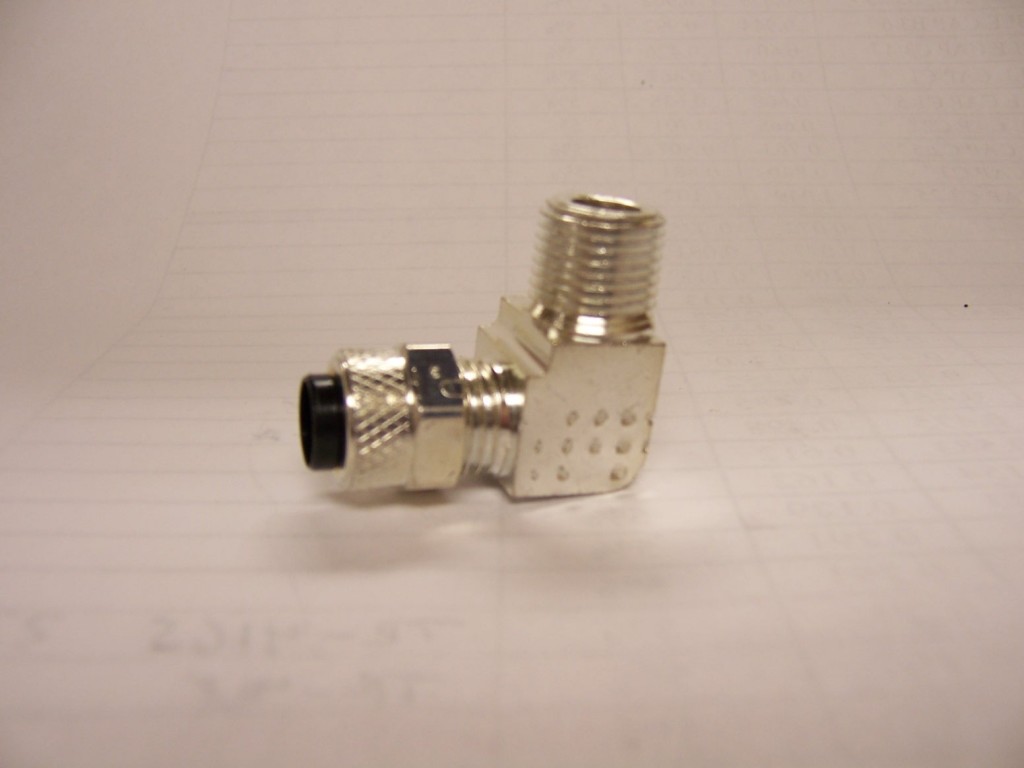

169P 169P-6-2

This part is used in the Air Pipe system specifically for connecting  3/8″ tubing ends into the air system. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 561314-1.

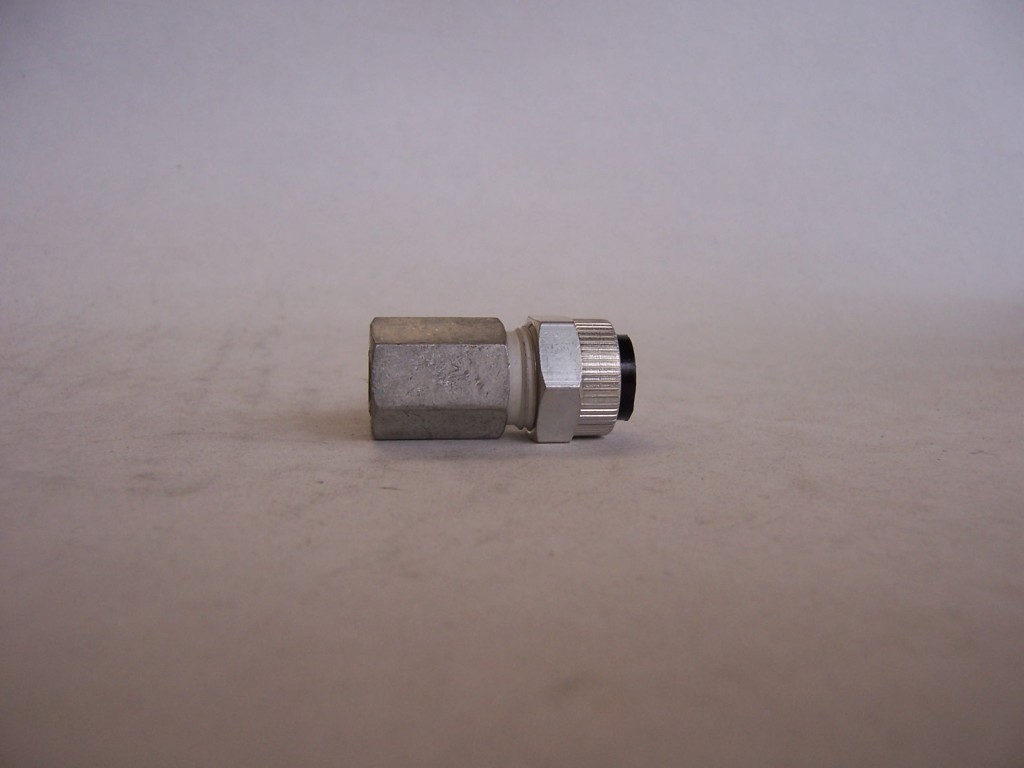

68P-6-END 68P-6END

This part is used in the Air Pipe system specifically for capping off a  3/8″ tubing end. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 561308-1.

75481-C-Flange 75481

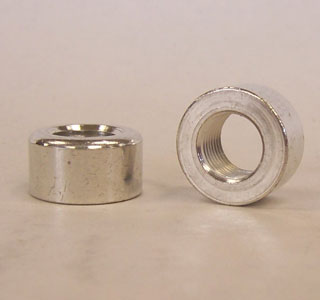

The C Flange, used in pressure testing, is tin dipped so that it can be soldered to the lead sheath cable.  This flange is used in conjunction with a test valve stem (see our 6914F under the valves and accessories page) or the 75482 plug shown here.   Purchased in packs of 25 pcs.

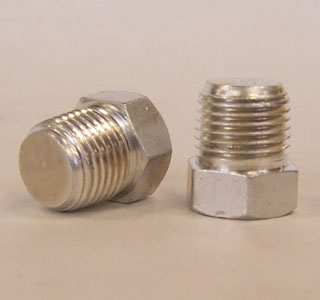

75482-C-Flange-Plug 75482

The C Flange plug is used in conjuction with the 75481 shown here

470-38 470-3/8

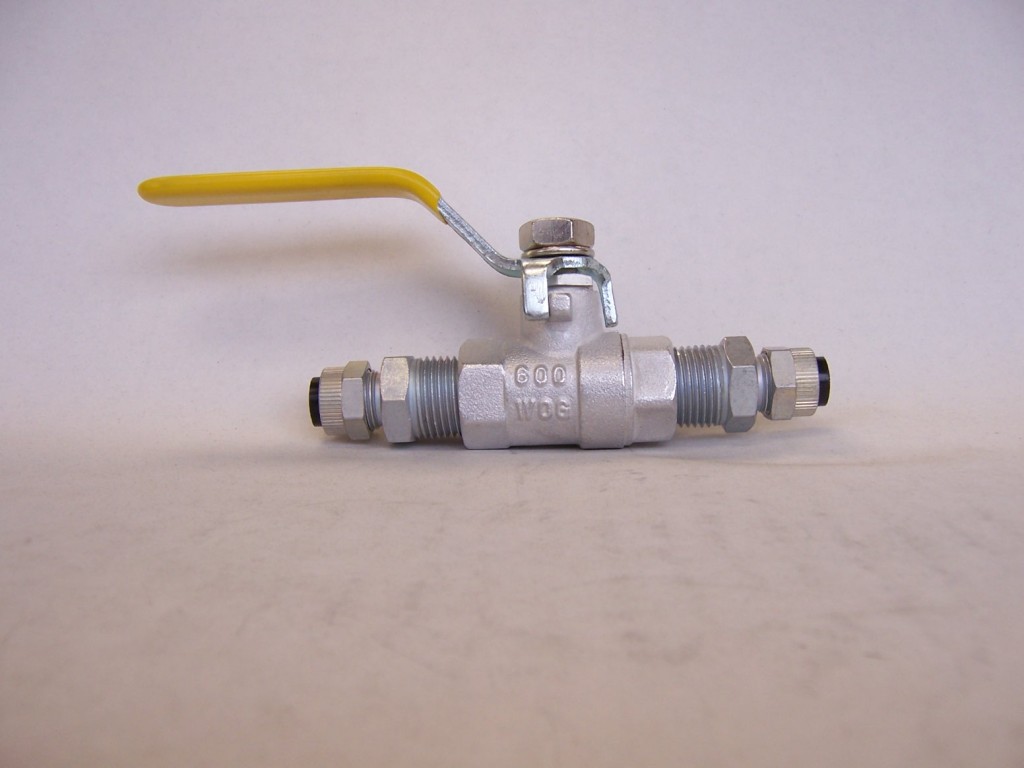

This shut-off assembly is designed for quick installation on 3/8″ tubing in the manhole repair or elsewhere in the  air pipe system.  This shutoff valve utilizes plastic collars, is re-usable and requires no special tools. Replaces AMPFIT part # 561306-1.

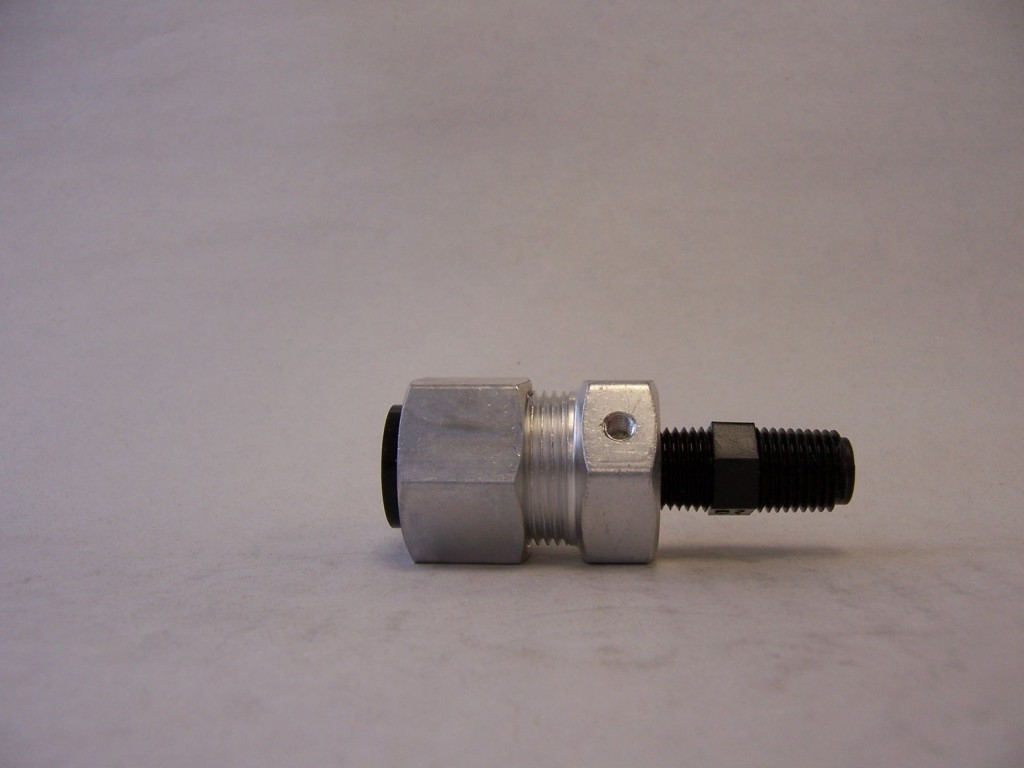

8669PANEL 8336PANEL

Used in the Air Pipe Systems (CA3131), this fitting facilitates a connection point for the air pipe to the Panel. A high density poly fitting creates a non-conductive connection. This part utilizes a plastic collar, is re-usable and requires no special tools. This part replaces AMPFIT part # 561411-1.

8669P-PIE 8336P-PIE

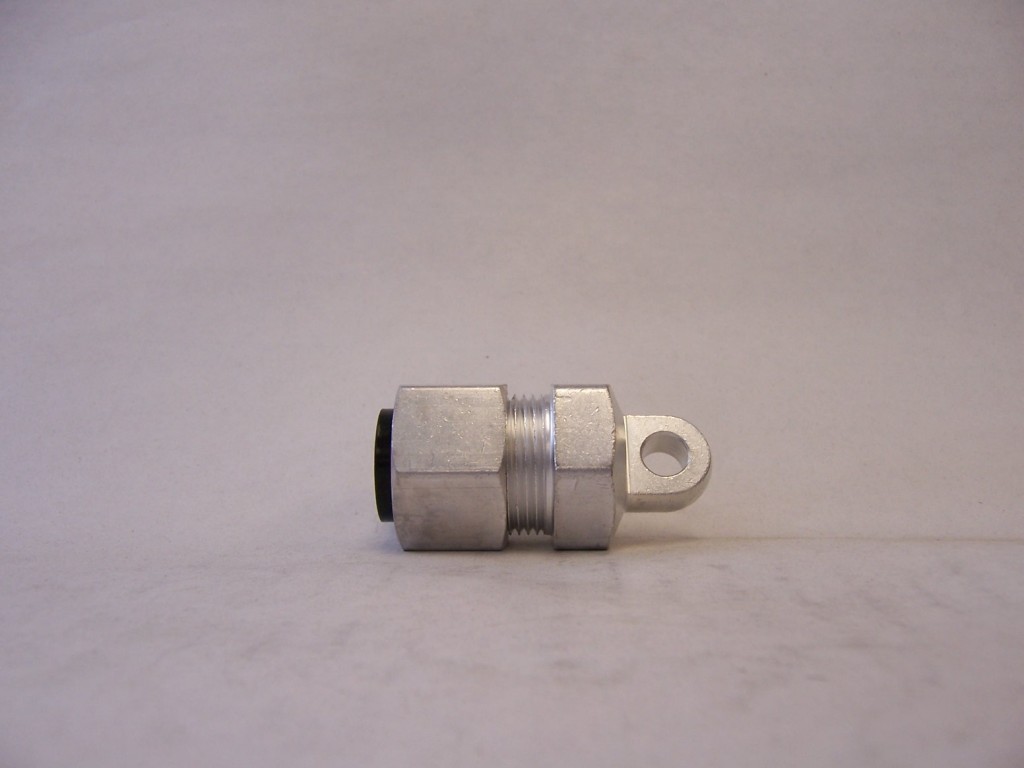

The Pulling Eye used for pulling the the Air Pipe  (CA3131). The Pulling Eye has a 5/16″ diameter pulling hole, utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 561274-1.

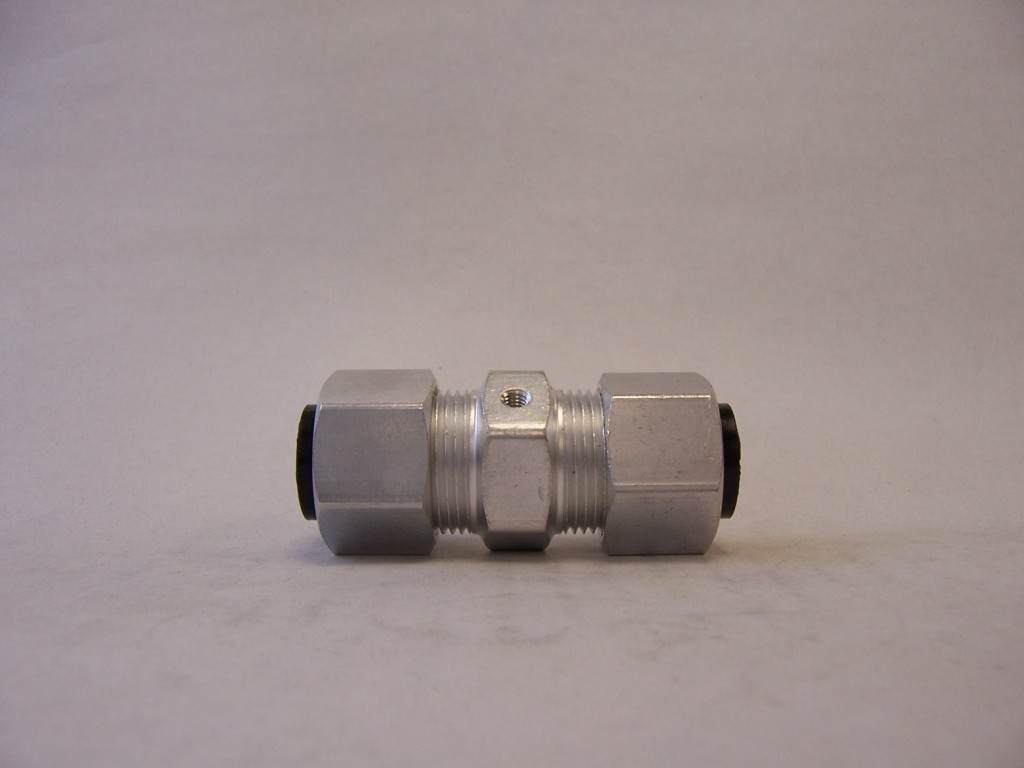

8669PCPL 8336PCPL

Used in the Air Pipe Systems (CA3131), this fitting provides a connection between two pieces of air pipe. A bonding kit is also included.  This part utilizes a plastic collar, is re-usable and requires no special tools. Can replace AMPFIT part # 332843.

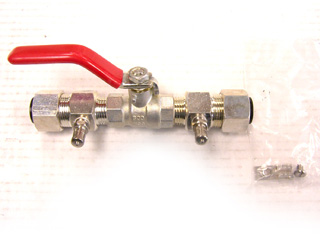

470PCLVB_edit 470PCLVB

This shut-off assembly is designed for quick installation in the manhole to provide a readily accessible test or isolation point in the air pipe for analysis, leak location, repair or air pipe system rearrangement. Equipped with an F test valve on each side of the shut off and a bonding kit. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 561604-1.

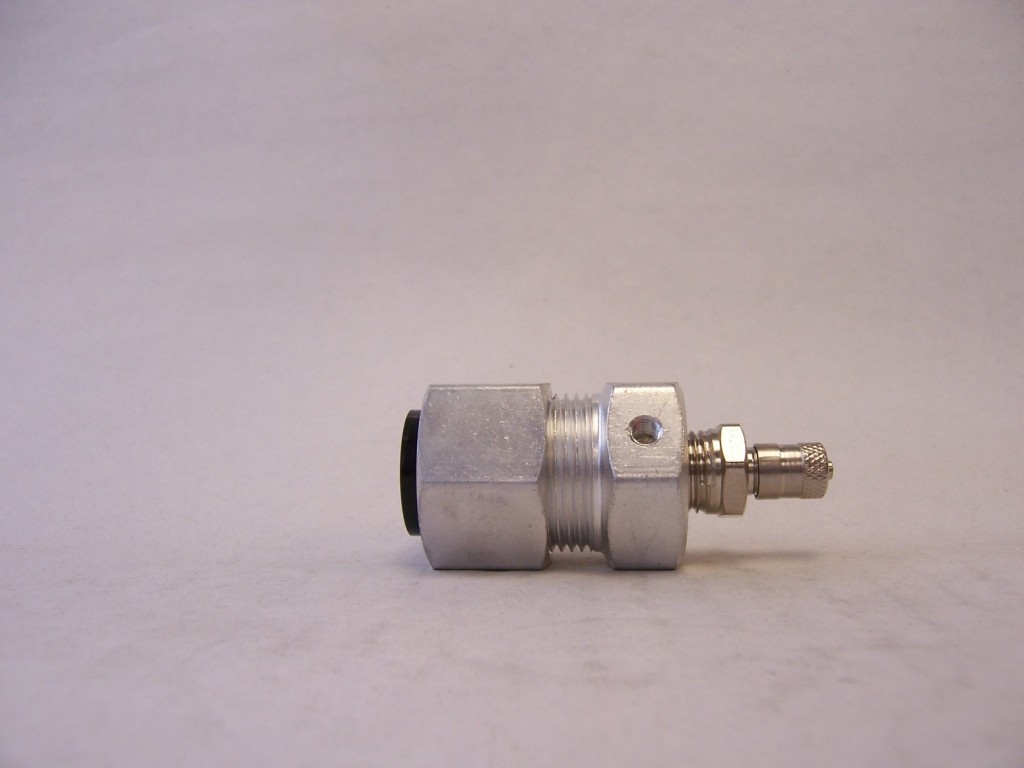

8336P-F 8336P-F

Used in the Air Pipe Systems (CA3131), this fitting provides a F test valve as a terminating point for the air pipe.  A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools.  Replaces AMPFIT part # 561683-1.

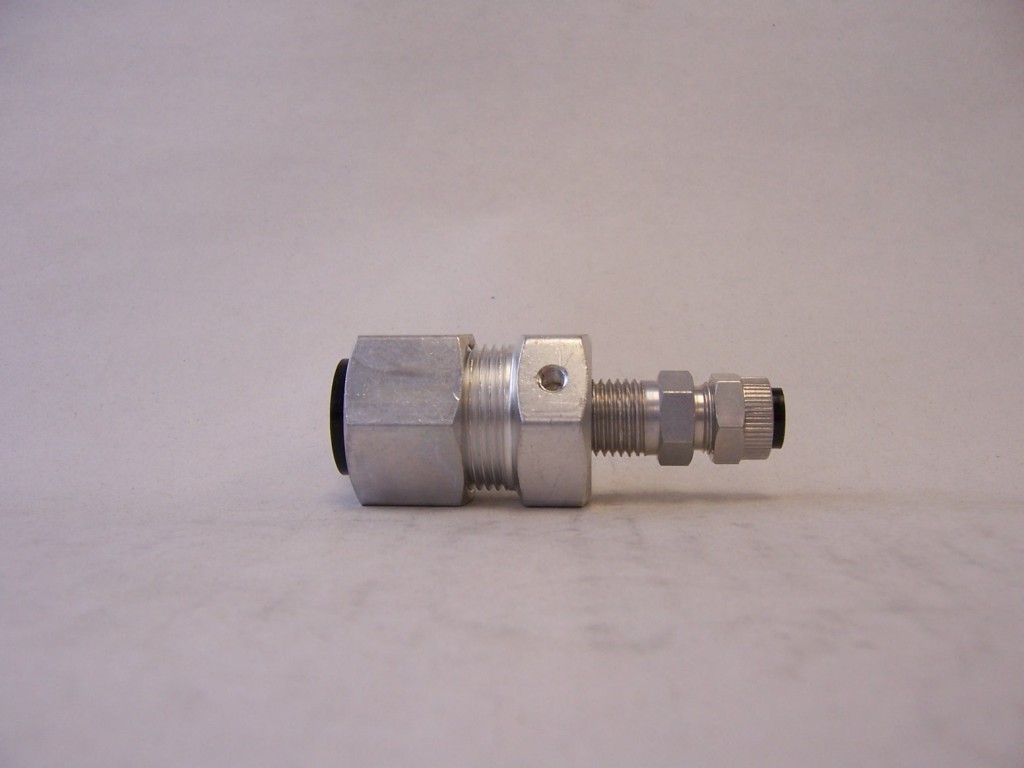

8669P-38a 8336P-3/8

Used in the Air Pipe Systems (CA3131), this fitting provides a 3/8″ tube fitting for transitioning from the CA-3131 air pipe to the 3/8″ tubing. A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 561720-1.

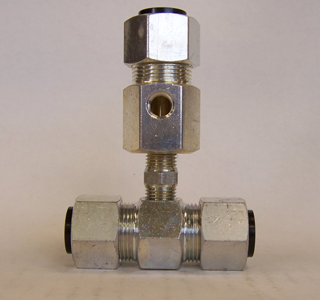

8336-TEE 8336P-TEE

Used in the Air Pipe Systems (CA3131), this fitting provides a “T” connection between three pieces of 1/2″ air pipe. A 1/8th NPT port for a pressure testing valve, plug or other connections. A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools. This replaces AMPFIT part # 561515-1.

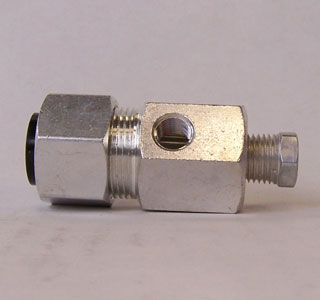

8336PCEB 8336PCEB

Used in the Air Pipe Systems (CA3131), this fitting provides a terminating point for the air pipe along with a 1/8th NPT port for a pressure testing valve or other connections. A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools. Replaces AMPFIT part # 332841.

8336PCENB 8336PCENB

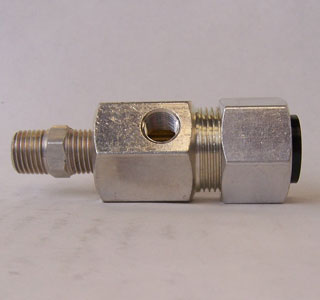

Used in the Air Pipe Systems (CA3131), this fitting facilitates a connection point for the air pipe to a 1/4″ female pipe thread. A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools. This part replaces AMPFIT part # 332842.

8336PCLB 8336PCTB

Used in the Air Pipe Systems (CA3131), this fitting provides a connection between two pieces of air pipe. A 1/4th NPT port for a pressure testing valve or other connections. A bonding kit is also included. This part utilizes a plastic collar, is re-usable and requires no special tools. Can replace AMPFIT part 332824

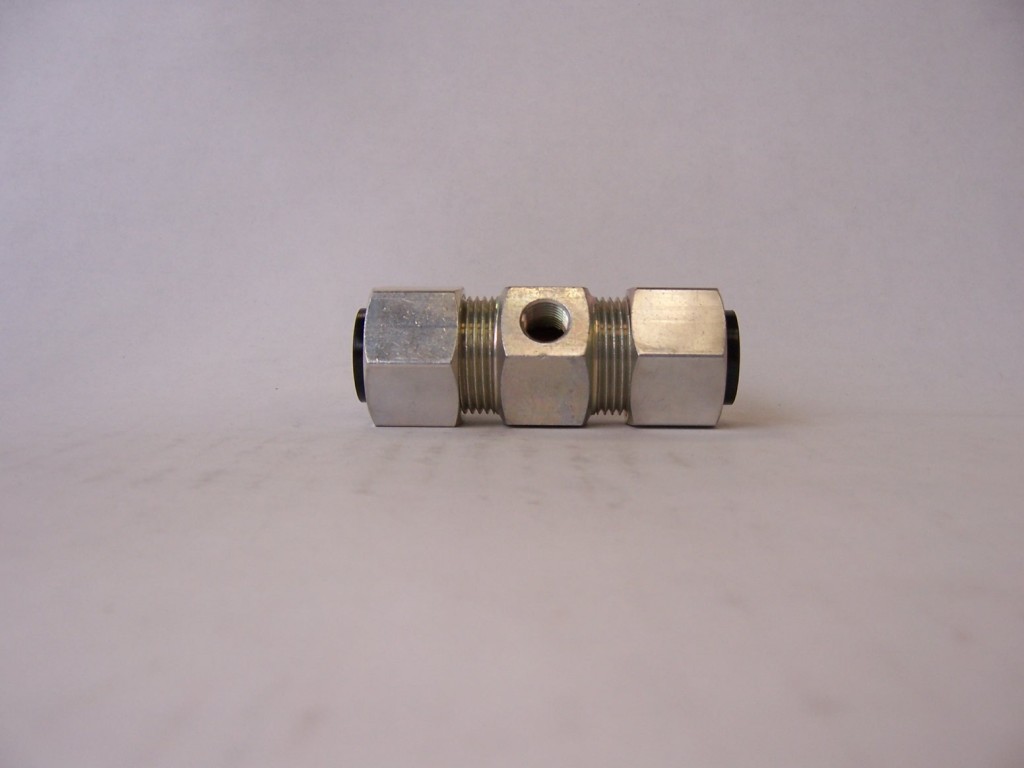

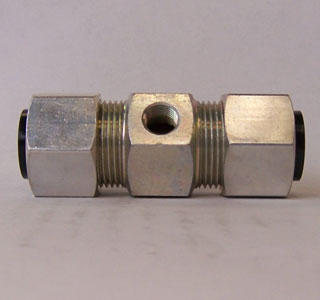

8336PCLB 8336PCLB

Used in the Air Pipe Systems (CA3131), this fitting provides a connection between two pieces of air pipe. A 1/8th NPT port for a pressure testing valve or other connections. A bonding kit is also included.  This part utilizes a plastic collar, is re-usable and requires no special tools. Can replace AMPFIT part # 332823.

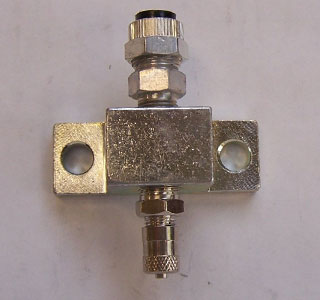

8622-100-1F 8622-100-1F

The Hi-Valve single valve can be located on a pole or at the neck of a manhole. This block has 1 “F” pressure testing valve and 1 “B” connector attached.

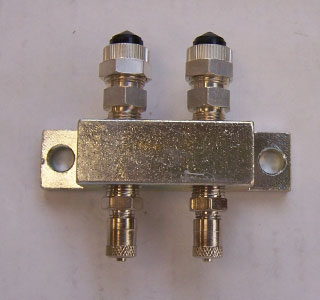

8622-100-2F 8622-100-2F

The Hi-Valve double valve can be located on a pole or at the neck of a manhole. This block has 2 “F” pressure testing valves and 2 “B” connectors attached.

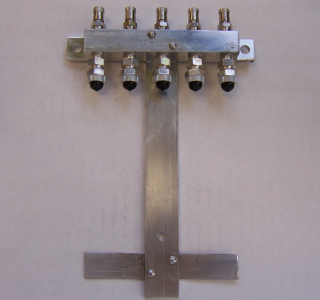

8622-5 8622-5

This Hi-Valve Connecting Block features a convenient means for terminating the plastic tubing connect to each underground cable. This block has 5 “F” Pressure testing valves and 5 “B” connectors.

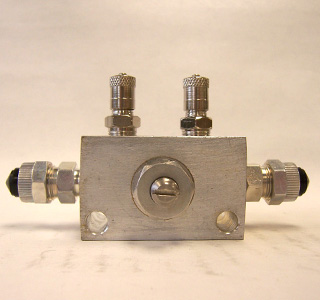

8664 8664

The 8664 is used for constructing a by-pass across a pressure plug. It comes equiped with (2) 3/8″ tube connections and (2) F test valve points. The diaphram in the housing can be opened and closed with an flat-head screw driver.

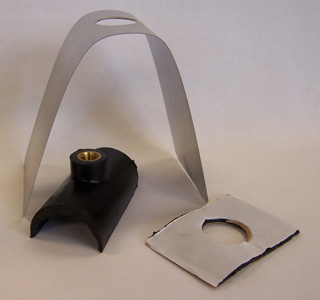

F-Flange-Kit 8669

This F Pressure flange and 1/8 NPT fitting is ideally suited for use at pressure reading points, bypasses or air inlets at any 3/4 in. (19 mm) dia. or larger cable. 2 hose clamps are required for attachment.

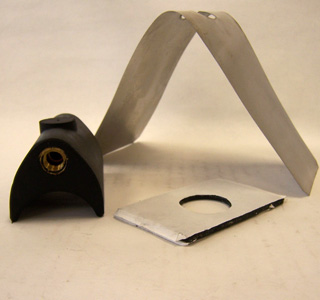

8669LFa 8669LF

This combination F flange kit and 1/8 NPT fitting is ideally suited for creating pneumatic connections, bypasses or air inlets at any 1″ to 2″ dia. or larger cable. 2 hose clamps required for attachment.

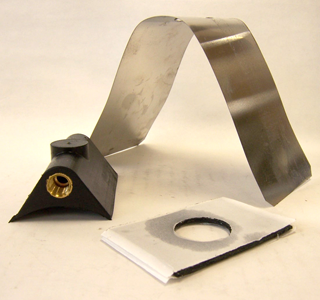

8669LG 8669LG

This combination G flange kit and 1/8 NPT fitting is ideally suited for creating pneumatic connections, bypasses or air inlets at any 2″ to 3″ dia. or larger cable. 2 hose clamps required for attachment.

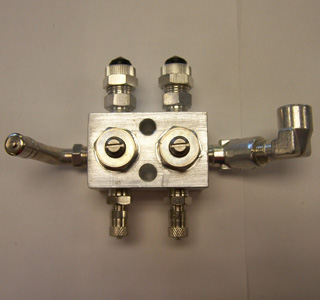

8778-2 8778-2

Plated Brass manifolds equipped with individual shut off valves, pressure testing valves and tubing connections for 2 cables with an additional pretture testing valve for reading manifold pressure.

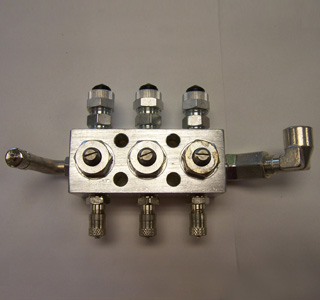

8778-3 8778-3

Plated Brass manifolds equipped with individual shut off valves, pressure testing valves and tubing connections for 3 cables with an additional pretture testing valve for reading manifold pressure.

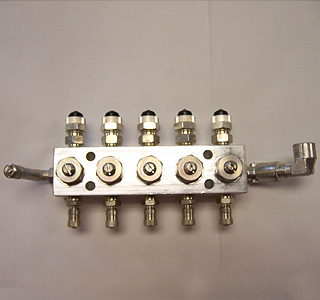

8778-5 8778-5

Plated Brass manifolds equipped with individual shut off valves, pressure testing valves and tubing connections for 5 cables with an additional pretture testing valve for reading manifold pressure. The inflow consists of a pre-fitted 1/8″ elbow which can be mated with the 68P-6-2 polyfitting for connection to the incoming 3/8″ tubing.   As with the other CA-3131 air pipe fittings, it utilizes a plastic collar,  is re-useable and requires no special tools.

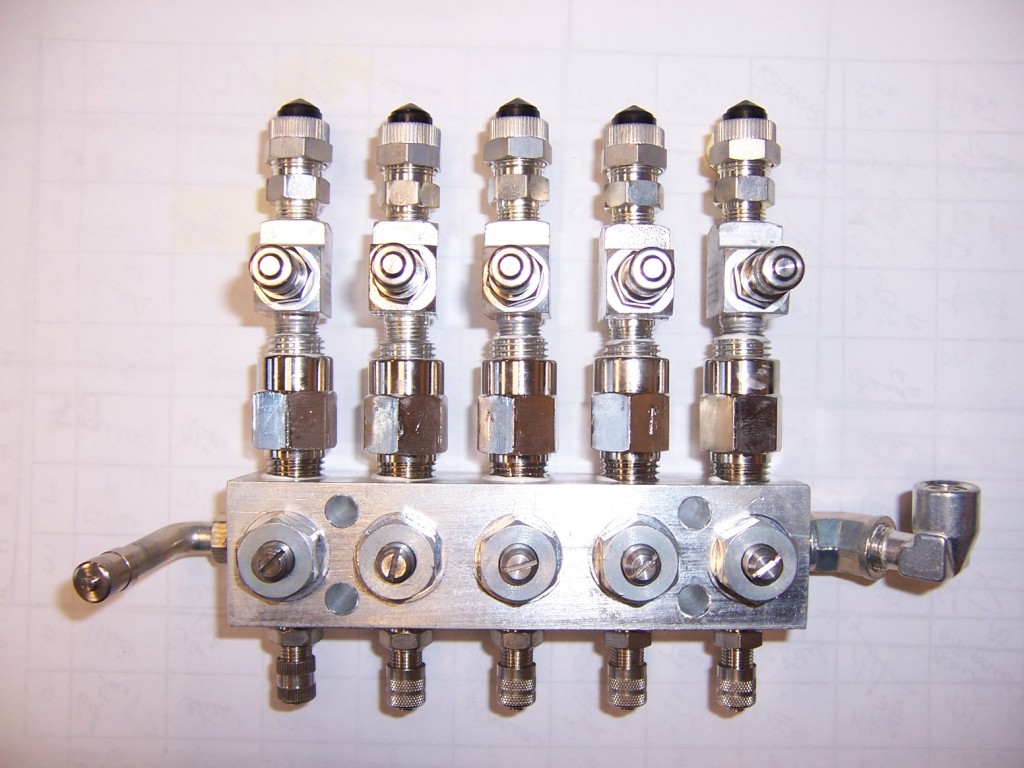

8778-5FT 8778-5FT

Plated Brass manifold that comes with pre-equipped with check valves at the (5) out-flowing 3/8″ fittings. This manifold, like the others, is equipped with individual shut off valves, pressure testing valves and tubing connections for 5 cables with an additional pretture testing valve for reading manifold pressure.  The inflow consists of a pre-fitted 1/8″ elbow which can be mated with the 68P-6-2 polyfitting for connection to the incoming 3/8″ tubing. As with the other CA-3131 air pipe fittings, it utilizes a plastic collar and is re-useable.

Cable End Caps

RUS Industries cable caps are made of Synthetic Rubber (Styrene-Butadiene) allowing for an excellent resistance to oxidation and abrasion. These caps are designed for sealing cable ends and are held in place with a hose clamp. (See our Stainless Steel Hose clamps)

B-Cable-Caps

Cable Cap B
Part Number Details ID Body Length LOA
8187BB.50 "B" Cable Cap 1/2'' 1/2" 4" 4"
8187BB.75 "B" Cable Cap 3/4'' .75" 4" 4"
8187BB1 "B" Cable Cap 1'' 1" 4" 4"
8187BB1.5 "B" Cable Cap 1.5'' 1.5" 4" 4"
8187BB2 "B" Cable Cap 2'' 2" 4" 4"
8187BB2.5 "B" Cable Cap 2.5'' 2.5" 4" 4"
8187BB3 "B" Cable Cap 3'' 3" 4" 4"
8187BB3.25 "B" Cable Cap 3.25'' 3.25" 4" 4"
8187BB3.6 "B" Cable Cap 3.60 [3 5/8''] 3.6" 4" 4"

C-Cable-Caps

Cable Cap C
Part Number Details ID Body Length LOA
8187BC.50 "C" Cable Cap 1/2'' w/ air valve 1/2" 4" 5-3/8"
8187BC.75 "C" Cable Cap 3/4'' w/ air valve .75" 4" 5-3/8"
8187BC1 "C" Cable Cap 1'' w/ air valve 1" 4" 5-3/8"
8187BC1.5 "C" Cable Cap 1.5'' w/ air valve 1.5" 4" 5-3/8"
8187BC2 "C" Cable Cap 2'' w/ air valve 2" 4" 5-3/8"
8187BC3 "C" Cable Cap 3'' w/ air valve 3" 4" 5-3/8"
8187BC3.25 "C" Cable Cap 3.25'' w/ air valve 3.25" 4" 5-3/8"
8187BC3.6 "C" Cable Cap 3.6'' w/ air valve 3.6" 4" 5-3/8"
